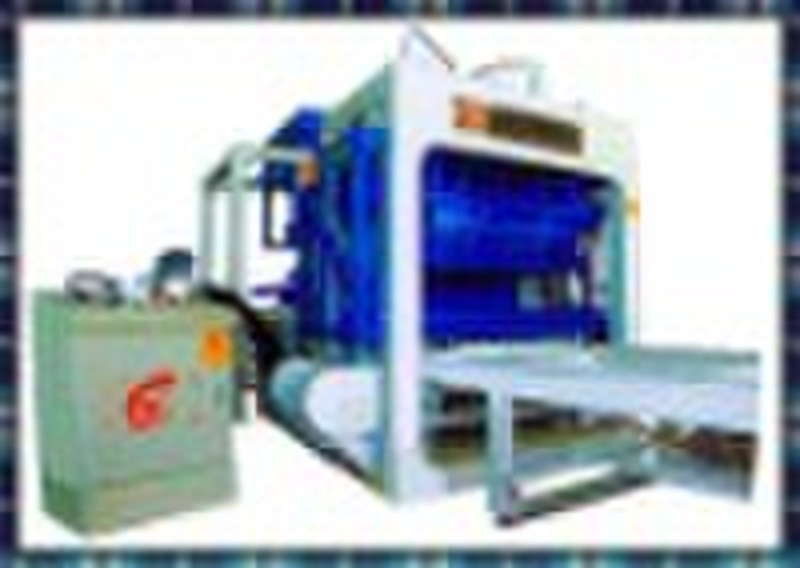

Block Making Machine

Block Making Machine--YLT70 Table of production Product Specification Brick/Board Brick/Day Myriad/ Year Standard Brick 240×115×53(mm)4892,16055,296,000Hollow Block 390×190×190(mm)1019,20011,520,000Multi-vented Brick 240×115×90(mm)2446,08027,648,000Road Brick(unicolour) 200×100×60(mm)3669,12041,472,000 Technology Parameter Pallet Size1060×860×25mm(Bamboo plastic)Forming Cycle12-25 secondMain Vibration ModeModel co-vibration modeFrequency of Vibration50 100HZGeneral Power 40kwAssessed Pressure25MPa Size of Main Body7200×2290×2825mm Weight of Main Body 13.8t Main Use Our automatic concrete brick making machine can produce many concreted products, such as empty-hole bricks, blind-hole bricks, and square-hole bricks, etc. It is multi-use, and can satisfy all needs of the market with the lower investment risk. Technical Features Classical mode of vibration, suitable for producing high-density bricks and standard bricks with short product-finished cycle and high efficiency. Compulsory mechanical positioning and automatic PLC control system to make safe logical control in the appliances. Low production cost. Raw materials can use sand, rock powder, coal ash and slag, etc.
